Sixy_the_red
 Post subject: Oil flow direction
PostPosted: Tue Jun 05, 2007 13:22
Offline
User
User avatar

Joined: Sat Apr 23, 2005 08:22
Posts: 2618
I'm fabricating a remote filter housing for my bike and I need to know which way the oil is supposed to flow through the filter. I've got a cartridge filter but it has no markings on it to tell me which way round to plumb it :?

_________________
Science won over religion when they started installing lightning rods on churches.
Top
 Profile Send private message

overfinch 630R
 Post subject:
PostPosted: Tue Jun 05, 2007 19:44
Offline
Member
Member

Joined: Sun Feb 05, 2006 23:56
Posts: 33
Location: UK - Croydon
if i remember this right, in a spin-on type canister the oil comes OUT through the hole in the middle and in through the holes around the outer edge.
Top
 Profile Send private message

Icandoit
 Post subject:
PostPosted: Tue Jun 05, 2007 20:14
Offline
User

Joined: Fri Mar 30, 2007 12:27
Posts: 361
overfinch 630R wrote:
if i remember this right, in a spin-on type canister the oil comes OUT through the hole in the middle and in through the holes around the outer edge.

It is.

Beware as the anti-drain valve won't work if it is plumbed the other way. Or rather it will. Permanently!
Top
 Profile Send private message

Gizmo
 Post subject:
PostPosted: Tue Jun 05, 2007 20:49
Offline
Member
Member
User avatar

Joined: Thu Apr 15, 2004 09:16
Posts: 3655
We use a remote filter on the race car. Its a Mocal unit.

Check this one..

http://www.sbdev.co.uk/Dry_Sump_Systems/Remote_Pump/Remote_oil_filters.htm

On race engine applications it is better to flow from the outside. If you uses a cartridge filter you can then inspect the filter for debris periodically. It is an early indication of mechanical failure when you have lumps of metal in the filter.... :o

_________________
Speed camera policy Kills
Top
 Profile Send private message

Sixy_the_red
 Post subject:
PostPosted: Wed Jun 06, 2007 08:13
Offline
User
User avatar

Joined: Sat Apr 23, 2005 08:22
Posts: 2618
Thanks guys - I had a feeling it was that way round but I wanted to check...

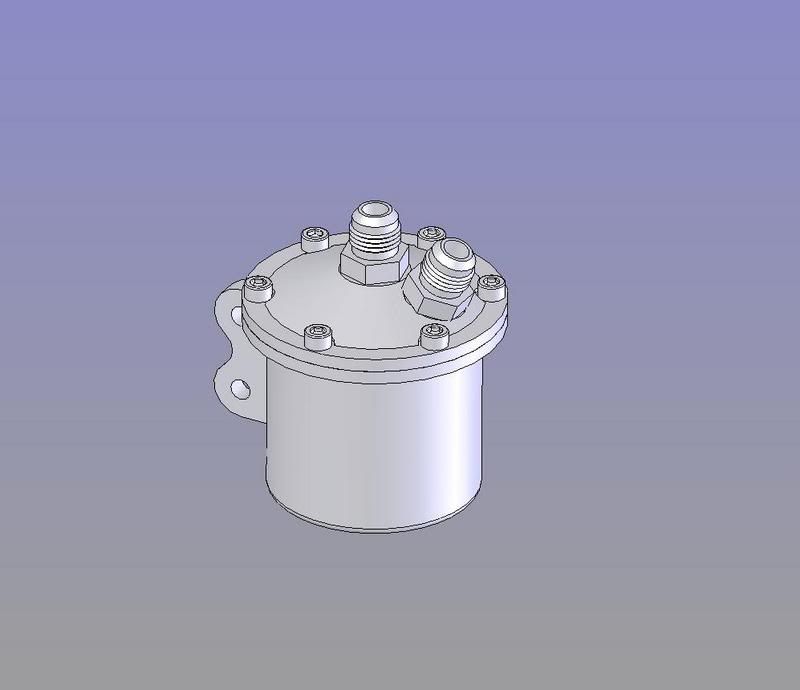

Gizmo... I have machine shop and a big chunk of alli...


It looks big, but its about 90mm square.

_________________
Science won over religion when they started installing lightning rods on churches.
Top
 Profile Send private message

Gizmo
 Post subject:
PostPosted: Wed Jun 06, 2007 19:04
Offline
Member
Member
User avatar

Joined: Thu Apr 15, 2004 09:16
Posts: 3655
coollllllllllllll... :D

MAybe you should get a few made and sell 'em on e-bay

Just a suggestion.......turn some fins in the housing and you will cool the oil as well.

_________________
Speed camera policy Kills
Top
 Profile Send private message

Sixy_the_red
 Post subject:
PostPosted: Wed Jun 06, 2007 20:55
Offline
User
User avatar

Joined: Sat Apr 23, 2005 08:22
Posts: 2618
The oil doesn't actually flow through the lower half housing, its just there for cosmetic value (and somewhere convenient to put the mounting bracket - that way I can turn it by hand rather than needing a 3 axis CNC mill...)

I'm fitting an oil cooler anyway.

:D

_________________
Science won over religion when they started installing lightning rods on churches.
Top
 Profile Send private message

Mole
 Post subject:
PostPosted: Wed Jun 06, 2007 22:01
Offline
Member
Member

Joined: Wed Feb 16, 2005 18:54
Posts: 4036
Location: Cumbria
:scratchchin: Hmmmm. You've got access to a machine shop, you say....

Must remember that!
Top
 Profile Send private message

Sixy_the_red
 Post subject:
PostPosted: Thu Jun 07, 2007 08:18
Offline
User
User avatar

Joined: Sat Apr 23, 2005 08:22
Posts: 2618
Mole wrote:
:scratchchin: Hmmmm. You've got access to a machine shop, you say....

Must remember that!


:lol: I didn't say I was a decent machinist though!

_________________
Science won over religion when they started installing lightning rods on churches.
